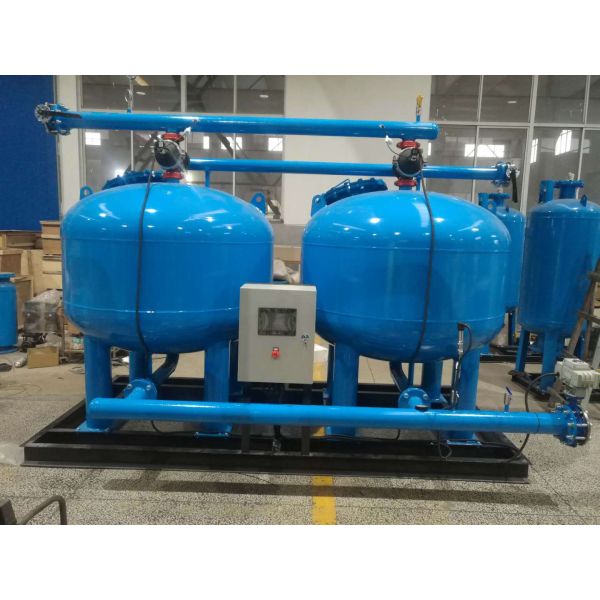

Activated Carbon Sand Filter Automatic Backwash Multimedia

Brand Name : Fenigal/OEM

Model Number : MF-CS

Certification : CE/NSF etc.

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal etc.

Supply Ability : 200 set per month

Delivery Time : 15~30 days

Packaging Details : Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized

Technology : Pressurized filtration

Material : carbon steel

Design : Skid mount/containerized

Water temp. : 5~35˚C

Water flow rate : up to 2~100 m3/H.vessel

Voltage : 380V,415V,220V,can be customized

Application : Surface, underground water, sewage water treatment

Size : Dia.50cm~320cm

Contact Now

Multi-media filter Automatic cleaning continuous activated carbon sand treatment equipment

Media Filtration is the most effective method for removal of suspended organic and inorganic solids from water. Media filters operate on the same basic principle as nature's own ground water filtering process. Contaminated unfiltered water enters the system through a deflector at the top of the filter and flows under pressure, through the media where solid particulate is entrapped.

All filters are available in epoxy coated steel or fiber glass construction material with automatic/manual operation and back-wash. Manual plastic or cast iron valves and electrically actuated valves can be provided. Automatic top-mounted or side-mounted heads can be fitted, with stager and a nest of air-operated diaphragm valves.

Upon request, steel pressure vessels can be supplied in either vertical or horizontal configuration, in single or multiple parallel units.

Types of multi-media filters include:

  • Multi-media Sand filters for reduction of total suspended solids
  • Activated Carbon Filters for the removal of organic matter, certain contaminants, chlorine residual and to enhance aesthetic qualities such as color, odor and taste
  • Greensand /Manganese filters for the removal of Iron and manganese
Regulation grid Import and export path Treated water volume ( T/H)
Ф400×1850×3.0 DN40 0.8-1.9
Ф500×1900×3.0 DN50 2~3
Ф600×1900×3.0 DN50 3~5
Ф800×2300×4.0 DN50 5~8
Ф900×2400×4.0 DN50 6~9
Ф1000×2400×4.0 DN50 8~10
Ф1200×2700×4.0 DN65 12~15
Ф1400×2800×4.0 DN65 15~24
Ф1500×2850×5.0 DN80 18~25
Ф1600×2900×5.0 DN80 21~30
Ф1800×3400×6.0 DN100 25~38
Ф2000×3600×6.0 DN100 34~42
Ф2200×3850×6.0 DN125 38~48
Ф2400×3900×6.0 DN125 42~52
Ф2500×4000×8.0 DN125 48~60
Ф2600×4000×8.0 DN150 37-80
Ф2800×4300×8.0 DN200 43~92
Ф3000×4600×8.0 DN200 49~106
Ф3000×4600×10.0 DN200 49~106
